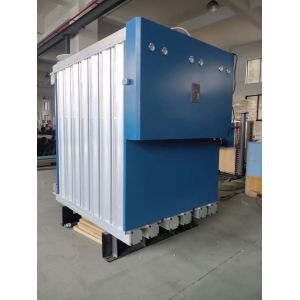

PSA Technology Modular Nitrogen Generator 95-99.999% Purity

Name: PSA Technology Modular Nitrogen Generator 9599999 Purity
Brand: True Gas
Price: 1 USD

China PSA Technology Modular Nitrogen Generator 95-99.999% Purity wholesale

Brand Name : True Gas

Model Number : TYN

Certification : CE ,ISO

Place of Origin : China

MOQ : 1 set

Price : as negotiable

Payment Terms : , T/T, L/C

Supply Ability : 300 sets per month

Packaging Details : woodencase packing

Delivery Time : 30 working days

Power : 0.5kw

Max Working temperature : 50°C

Color : Blue

Material : carbon steel

Contact Now

New technology modular nitrogen generator purity 95-99.999%

TYNMK series Modular nitrogen generator adopt PSA(pressure swing adsorption)technology,using compressed air as raw materials,quality selection of adsorbent,and under certain pressure,the adsorption capacity of adsorbents for oxygen and nitrogen is different,though programmable program control pneumatic valve opening and closing to control the adsorber alternate cycle,pressure adsorption and vacuum stripping,complete separation of oxygen and nitrogen,get high purity .

High reliability Remote control Easy for operation PLC control


Modular nitrogen generators are widely used in various industries such as medicine, scientific research institutes, 3D printing, laboratories, food, SMT, semiconductor packaging and testing, chemical industry, steel, shipbuilding and marine engineering. We focus on scientific and technological research and development, provide customers with more comprehensive, more convenient and more intimate services, continue to pursue innovative products and improve service models, and extensively cooperate with domestic and foreign research institutes in product development, design and scientific research to create for customers Higher value.

Modular type PSA nitrogen generator
 	 			Model 			Specification
 			G-5MZ
 			N2 capacity 			Nm3/Hr 			5
 			N2 purity 			% 			99.99%
 			N2 outlet pressure 			Mpa 			0.1~0.6
 			Air inlet pressure 			MPa 			0.7~0.8
 			Air inlet temperature 			℃ 			≤38
 			Dew point 			℃ 			≤-40
 			Working condition
 			Air compressor flow 			m³/Min 			0.5
 			Max working pressure 			MPa 			0.8
 			Ambient temperature 			℃ 			40
 			N2 outlet dia 			DN 			15
 			Air inlet dia 			DN 			15
 			Working cycle 			S 			40-55
 			Regeneration mode 			  			Pressure swing analysis and alternate purging
 			Voltage: 			  			220V/50Hz
 			Pneumatic valve 			mm 			DN15*5
 			Muffler 			mm 			customizing
 			Adsorbent 			CMS260 			1 batch
 			Controller 			PLC 			Siemens


Product Tags:

PSA Technology Modular Nitrogen Generator

99.999% Purity Modular Nitrogen Generator

Modular psa nitrogen generator

PSA Technology Modular Nitrogen Generator 95-99.999% Purity Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Jiangsu Tongyue Gas System Co.,Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Model		Specification
G-5MZ
N2 capacity	Nm³/Hr	₅
N2 purity	%	99.99%
N2 outlet pressure	Mpa	0.1~0.6
Air inlet pressure	MPa	0.7~0.8
Air inlet temperature	℃	≤38
Dew point	℃	≤-40
Working condition
Air compressor flow	m³/Min	0.5
Max working pressure	MPa	0.8
Ambient temperature	℃	40
N2 outlet dia	DN	15
Air inlet dia	DN	15
Working cycle	S	40-55
Regeneration mode		Pressure swing analysis and alternate purging
Voltage:		220V/50Hz
Pneumatic valve	mm	DN15*5
Muffler	mm	customizing
Adsorbent	CMS260	1 batch
Controller	PLC	Siemens
